About Above Ground Stills
You can utilize water stills in various environments. Even hot, arid desert habitats can yield water to a parched survivalist. Stills draw moisture from the ground or from plant material through the processes of evaporation and condensation.
Various materials are required to build a still. Some can be obtained via raw materials in the wilderness while others should be a part of your survival kit.
You will also need time to allow the water still to collect water. It takes about 24 hours to get 0.5 to 1 liter of water so you will maximize productivity by having 2-3 stills operating at the same time.
Building a Vegetation Bag Still

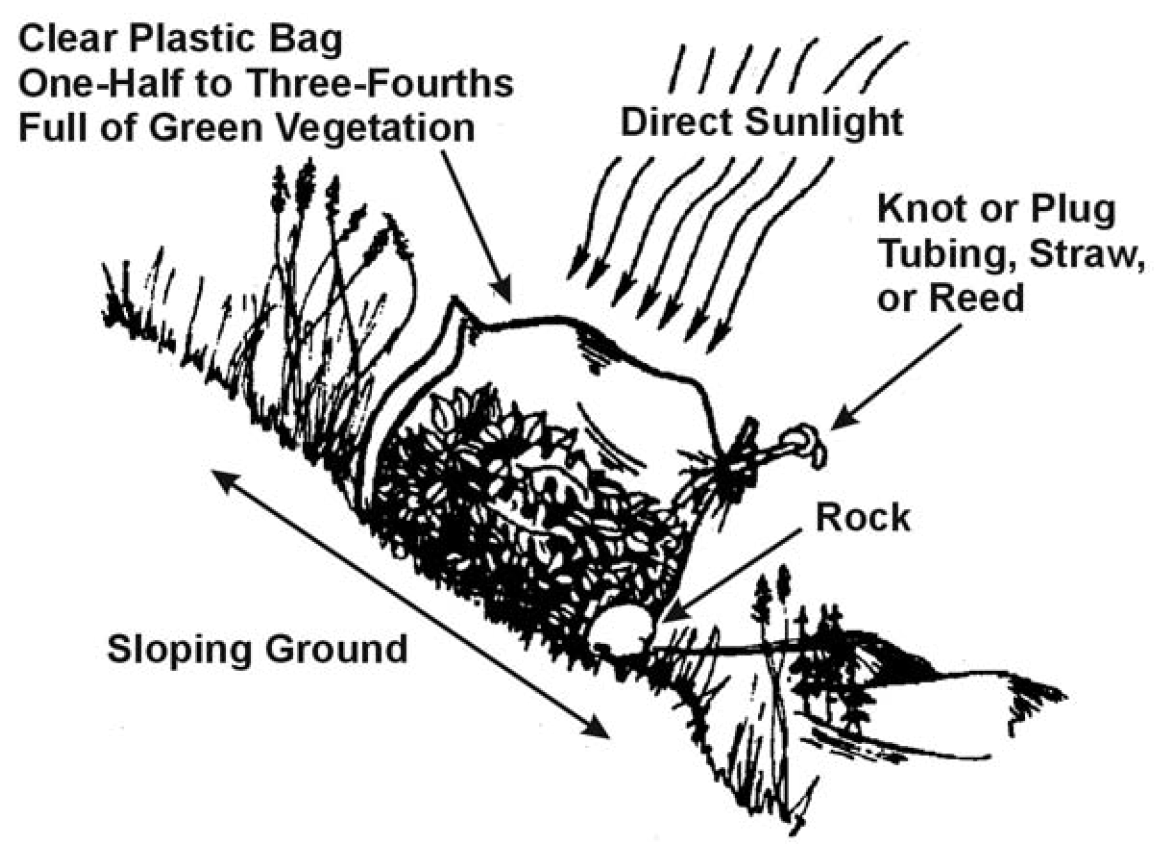

To make the vegetation bag still, you need a sunny slope on which to place the still, a clear plastic bag, green leafy vegetation, and a small rock (see diagram above).
- Fill the bag with air by turning the opening into the breeze or by “scooping” air into the bag by fanning it.
- Fill the plastic bag one-half to three-fourths full of green leafy vegetation. Be sure to remove all hard sticks or sharp spines that might puncture the bag.
- Place a small rock or similar item in the bag.
- Close the bag and tie the mouth securely as close to the end of the bag as possible to keep the maximum amount of air space. If you have a piece of tubing, a small straw, or a hollow reed, insert one end in the mouth of the bag before you tie it securely. Then tie off or plug the tubing so that air will not escape. This tubing will allow you to drain out condensed water without untying the bag. CAUTION – Do not use poisonous vegetation. It will provide poisonous liquid.
- Place the bag, mouth downhill, on a slope in full sunlight. Position the mouth of the bag slightly higher than the low point in the bag.
- Settle the bag in place so that the rock works itself into the low point in the bag.
To get the condensed water from the still, loosen the tie around the bag’s mouth and tip the bag so that the water collected around the rock will drain out. Then retie the mouth securely and reposition the still to allow further condensation.
Change the vegetation in the bag after extracting most of the water from it. This will ensure maximum output of water.
Building a Transpiration Bag (Condensation Trap) Still

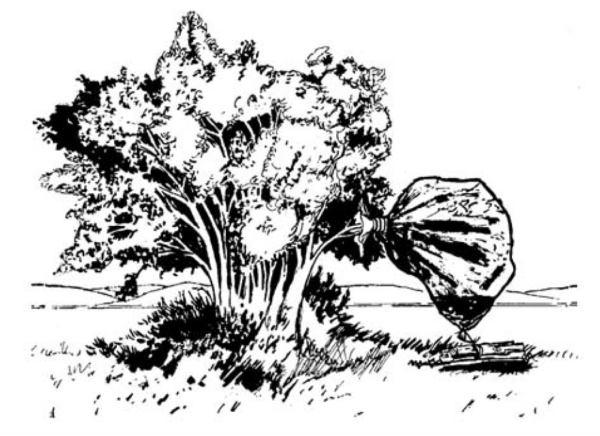

A transpiration bag still is similar to the vegetation bag but is easier to construct. Simply tie the plastic bag over a leafy tree limb with a tube inserted and tie the mouth of the bag off tightly around the branch to form an airtight seal. Tie the end of the limb to the ground so that it hangs below the level of the mouth of the bag.
The same limb may be used for 3 to 5 days without causing long-term harm to the limb. It will heal itself within a few hours of removing the bag.
Building a Belowground Solar Still
The solar still was developed by two scientists working for the United States Department of Agriculture. Solar energy heats the ground passing through a clear, plastic barrier. Moisture from the soil then evaporates, rises, and condenses underneath the plastic sheet. It also has an advantage in that the water produced is purified (even urine can be purified using a solar still). The still does not produce much water though so you will need to supplement your solar still water collection with other methods.

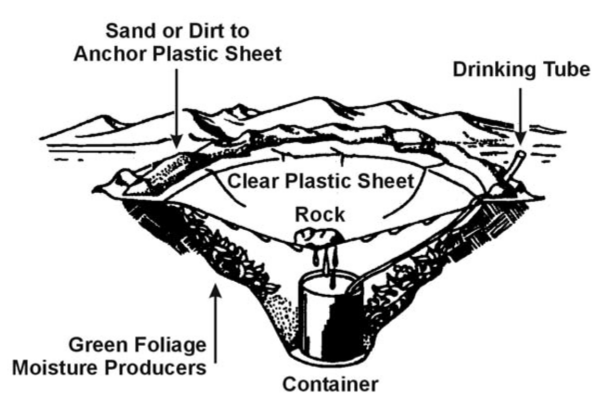

To make a belowground solar still, you need a digging tool, a container, a clear plastic sheet, a drinking tube, and a rock.
Select a site where you believe the soil could potentially contain moisture (such as a dry streambed or a low spot where rainwater has collected). The soil at this site should be easy to dig, and sunlight must hit the site most of the day.
- Dig a bowl-shaped hole about 1 meter (3 feet) across and 60 centimeters (24 inches) deep.
- Dig a sump (indention for a container to fit snugly in) in the center of the hole. The sump’s depth and perimeter will depend on the size of the container that you will use to collect the water. The bottom of the sump should allow the container to stand upright.
- Anchor tubing to the container’s bottom by forming a loose overhand knot in the tubing to weigh it down.
- Place the container upright in the sump.
- Extend the unanchored end of the tubing up, over, and beyond the lip of the hole so you can easily access the tube (which will be used like a drinking straw).
- Place the plastic sheet over the hole, covering its edges with soil to hold it in place.
- Place a rock in the center of the plastic sheet to make the sheet bow slightly.
- Lower the plastic sheet into the hole until it is about 40 centimeters (16 inches) below ground level. It now forms an inverted cone with the rock at its apex. Make sure that the cone’s apex is directly over your container. Also make sure the plastic cone does not touch the sides of the hole because the earth will absorb the condensed water.
- Put more soil on the edges of the plastic to hold it securely in place and to prevent the loss of moisture.
- Plug the tube when not in use to keep the moisture from evaporating and to keep insects out.
You can drink water without disturbing the still by using the tube as a straw. By opening the still, you release the moist, warm air that has accumulated. A tube will allow you to keep the solar still close and “generating” water.
You may want to use plants in the hole as a moisture source. If so, dig out additional soil from the sides of the hole to form a slope on which to place the plants. Then proceed as above.
If polluted water is your only moisture source, dig a small trough outside the hole about 25 centimeters (10 inches) from the still’s lip. Dig the trough about 25 centimeters (10 inches) deep and 8 centimeters (3 inches) wide. Pour the polluted water in the trough. Be sure you do not spill any polluted water around the rim of the hole where the plastic sheet touches the soil. The trough holds the polluted water, and the soil filters it as the still draws it. The water then condenses on the plastic and drains into the container. This process works extremely well when your only water source is salt water. Note: do not use radiator fluid as the chemicals evaporate along with the water and produce toxic water.
Build Multiple Stills
You will need at least three stills to meet your individual daily water intake needs. In comparison to the belowground still and the water transpiration bag still, the vegetation bag produces the best yield of water. Don’t sit around waiting for water to accumulate in your stills. Instead, spend that time building multiple stills.
